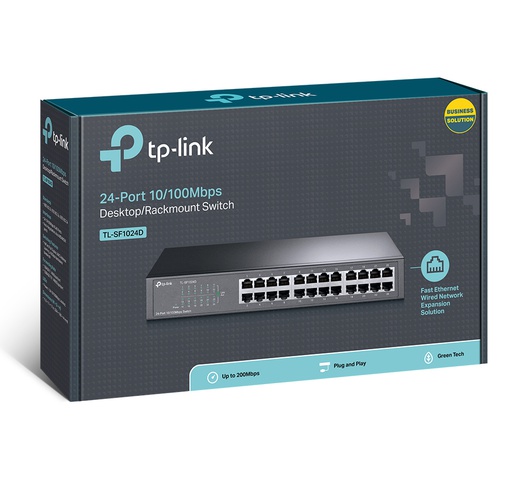

TP-Link 24-Port Fast Ethernet Switch (TL-SF1024D)

TP-Link 24-Port Fast Ethernet Switch (TL-SF1024D)

The TP-Link 24-Port Fast Ethernet Switch (TL-SF1024D) is an unmanaged 24-port 10/100 Mbps switch designed for dense network environments where multiple devices require basic connectivity. It is ideal for small to medium businesses, school computer labs, conference centers, and retail locations. The switch features a non-blocking switching fabric with 4.8 Gbps capacity, enabling full wire-speed forwarding on all 24 ports simultaneously. All ports support Auto-MDI/MDIX and auto-negotiation. The 19-inch rackmountable metal housing includes detachable rack ears for 1U rack installation. A fanless design ensures silent operation, and Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption during idle periods. IEEE 802.3x flow control prevents packet loss under heavy load. This switch provides a cost-effective solution for expanding a network without the expense of Gigabit switches when 100 Mbps is sufficient.

• Model: TL-SF1024D (unmanaged, plug-and-play)
• Port Count: 24 x 10/100 Mbps RJ45 ports (Auto-MDI/MDIX, auto-negotiation)
• Switching Capacity: 4.8 Gbps (non-blocking, full wire-speed)
• Packet Forwarding Rate: 3.57 Mpps (64-byte packets)
• MAC Address Table: 8K entries
• Flow Control: IEEE 802.3x (full-duplex), backpressure (half-duplex)
• Power Supply: Internal (100-240V AC, 50/60Hz), consumption ≤8W
• Housing: Metal (steel), rackmountable (ears included), fanless silent operation
• Mounting: 19-inch rack (1U) or desktop with included feet
• Dimensions: 440mm x 180mm x 44mm (standard 1U size)
• Application: Medium-sized business LANs, school computer labs (24 workstations), retail point-of-sale networks, IP camera systems (24 SD cameras)
• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az, RoHS, CE, FCC
