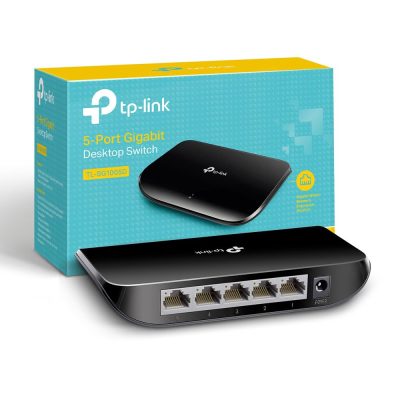

TP-Link 5-Port Gigabit Switch (TL-SG1005D)

TP-Link 5-Port Gigabit Switch (TL-SG1005D)

The TP-Link 5-Port Gigabit Switch (TL-SG1005D) provides five 10/100/1000 Mbps ports for high-speed networking in home and small office environments. This unmanaged plug-and-play switch delivers Gigabit Ethernet speeds, making it ideal for bandwidth-intensive applications such as HD video streaming, large file transfers, online gaming, and local media streaming. All ports support Auto-MDI/MDIX, auto-negotiation, and IEEE 802.3x flow control for full-duplex operation. The switch features a non-blocking switching capacity of 10 Gbps, ensuring full wire-speed performance across all ports simultaneously. The compact, fanless metal housing provides silent operation and durability. Energy Efficient Ethernet (IEEE 802.3az) automatically reduces power consumption when ports are idle. Perfect for upgrading an existing Fast Ethernet network to Gigabit speeds, connecting a NAS device for fast backups, or creating a high-speed home network backbone.

• Model: TL-SG1005D (unmanaged, plug-and-play)
• Port Count: 5 x 10/100/1000 Mbps RJ45 ports (Auto-MDI/MDIX, auto-negotiation)
• Switching Capacity: 10 Gbps (non-blocking, full wire-speed)
• Packet Forwarding Rate: 7.44 Mpps (64-byte packets)
• MAC Address Table: 2K entries
• Flow Control: IEEE 802.3x full-duplex, backpressure half-duplex
• Jumbo Frame Support: Yes (up to 9K bytes)
• Power Supply: 5V DC, 0.6A (external adapter), consumption <3W
• Housing: Metal (steel), fanless — silent operation
• Mounting: Desktop or wall-mountable (screw slots)
• Dimensions: 158mm x 99mm x 27mm (approx.)
• Application: Home Gigabit networking, small office file server connections, gaming setups, HD video streaming, NAS direct attach
• Standards: IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.3az, RoHS compliant
