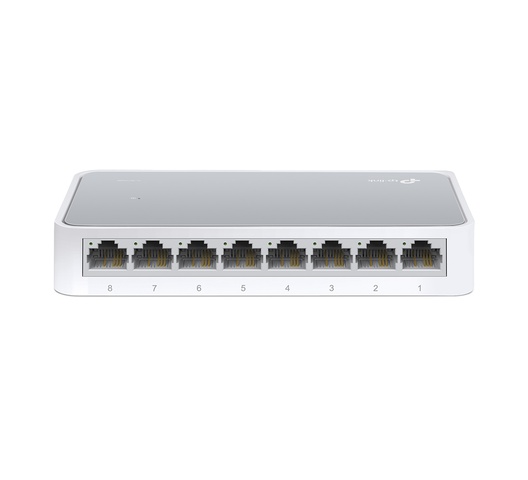

TP-Link 8-Port Fast Ethernet Switch (TL-SF1008D)

TP-Link 8-Port Fast Ethernet Switch (TL-SF1008D)

The TP-Link 8-Port Fast Ethernet Switch (TL-SF1008D) provides eight 10/100 Mbps ports, making it ideal for slightly larger small office/home office (SOHO) networks. This unmanaged switch requires no configuration—simply connect the power adapter and attach network cables. Each port supports automatic MDI/MDIX, eliminating the need for crossover cables. The switch features non-blocking switching architecture, delivering full wire-speed forwarding across all ports simultaneously. The compact, fanless design (metal or plastic housing) operates silently, suitable for desktop or wall-mount installation. IEEE 802.3x flow control prevents packet loss during network congestion. Energy Efficient Ethernet (IEEE 802.3az) reduces power consumption when ports are idle. Perfect for connecting multiple computers, printers, NAS devices, and IP cameras in a small office or home network where Gigabit speeds are not required.

• Model: TL-SF1008D (unmanaged, plug-and-play)
• Port Count: 8 x 10/100 Mbps RJ45 ports (Auto-MDI/MDIX, auto-negotiation)
• Switching Capacity: 1.6 Gbps (non-blocking)
• Packet Forwarding Rate: 1.19 Mpps (64-byte packets)
• MAC Address Table: 1K or 2K entries (varies by revision)
• Flow Control: IEEE 802.3x full-duplex, backpressure half-duplex
• Power Supply: 9V DC, 0.6A (external adapter included), max consumption <3W
• Housing: Metal (TL-SF1008D) or plastic (TL-SF1005D style), fanless silent operation
• Mounting: Desktop or wall-mountable (screw slots)
• Dimensions: 158mm x 99mm x 27mm (approx.)
• Application: Small office networking (8 devices), home network expansion, IP camera system (SD cameras), small business LAN
• Standards: IEEE 802.3, 802.3u, 802.3x, 802.3az, RoHS compliant
