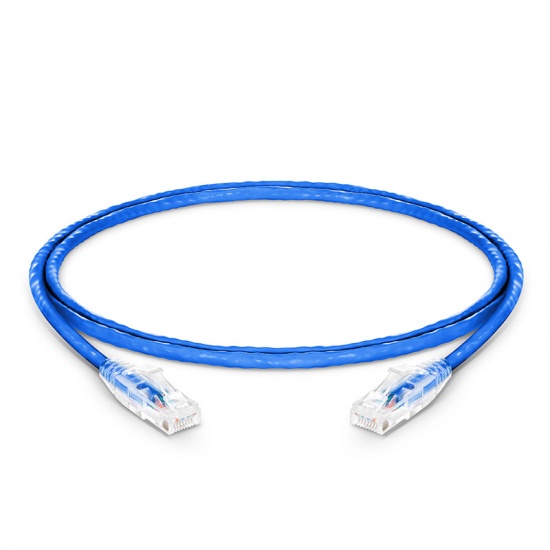

Cat6 1m Gigabit Patch Cord

Cat6 1m Gigabit Patch Cord (High-Performance, 250 MHz)

This Cat6 1m Gigabit patch cord is specifically optimized for 1000BASE-T (Gigabit Ethernet) applications, delivering full 250 MHz bandwidth with extremely low insertion loss and crosstalk. The cable features 24 AWG stranded pure copper conductors with a precision-molded snagless boot. It is ideal for high-speed data transfer environments such as server rooms, data centers, and multimedia workstations where reliable Gigabit connectivity is essential. The 1-meter length is perfect for short patching between high-density switches, connecting a router to a fiber optic modem, or attaching a high-performance workstation to a network jack. Each cord is individually tested and certified for Cat6 performance parameters including NEXT (Near-End Crosstalk), PS NEXT (Power Sum NEXT), and return loss. Available in multiple colors for port-level identification.

• Length: 1 meter (3.3 feet) — short, high-performance interconnect
• Performance Rating: Cat6 / Class E — 250 MHz bandwidth, tested for Gigabit Ethernet
• Conductor: 24 AWG stranded bare copper (pure copper, not CCA)
• Connectors: RJ45 male to RJ45 male, 8P8C, 50 micro-inch gold-plated contacts over nickel barrier
• Boot: Snagless molded boot — prevents latch damage in dense patching environments
• Wiring: T568B straight-through (IEEE 802.3ab compliant)
• Attenuation (Insertion Loss): ≤0.2 dB at 100 MHz, ≤0.35 dB at 250 MHz (typical)
• NEXT: ≥35 dB at 250 MHz
• PoE Support: Yes — supports PoE, PoE+, and PoE++ (up to 90W) without power loss
• Application: Server to switch (top-of-rack), router to modem, patch panel to switch, workstation to wall, high-speed LAN gaming
• Color Options: Blue (standard), black, gray, yellow, green, red, white, orange, purple
• Standards: TIA/EIA-568-C.2, ISO/IEC 11801, RoHS, REACH compliant
